BOKA BS-712R metal band saw, with 178x210mm, 45°-90° swiveling saw ...
Precise and efficient metal band saw for versatile applications

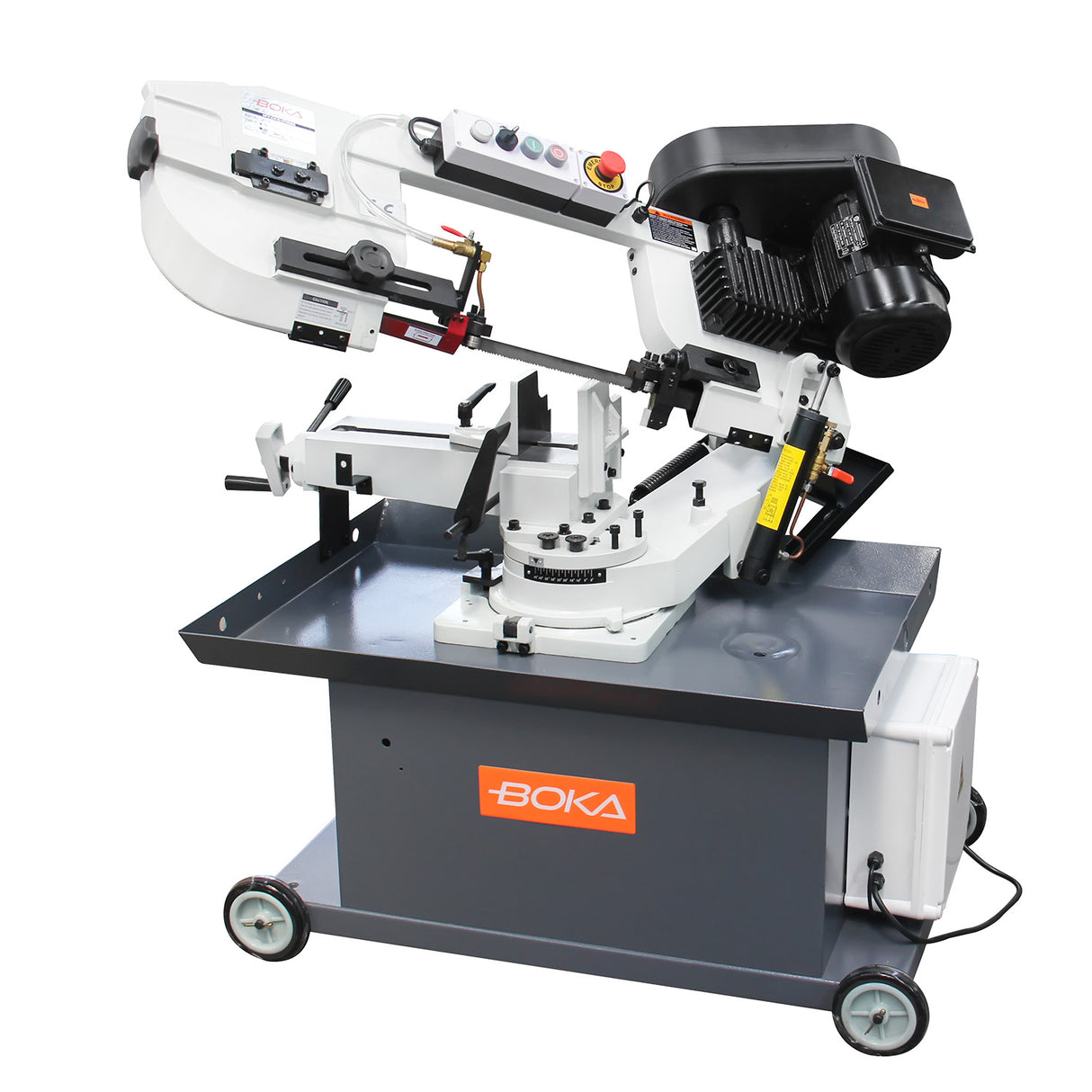

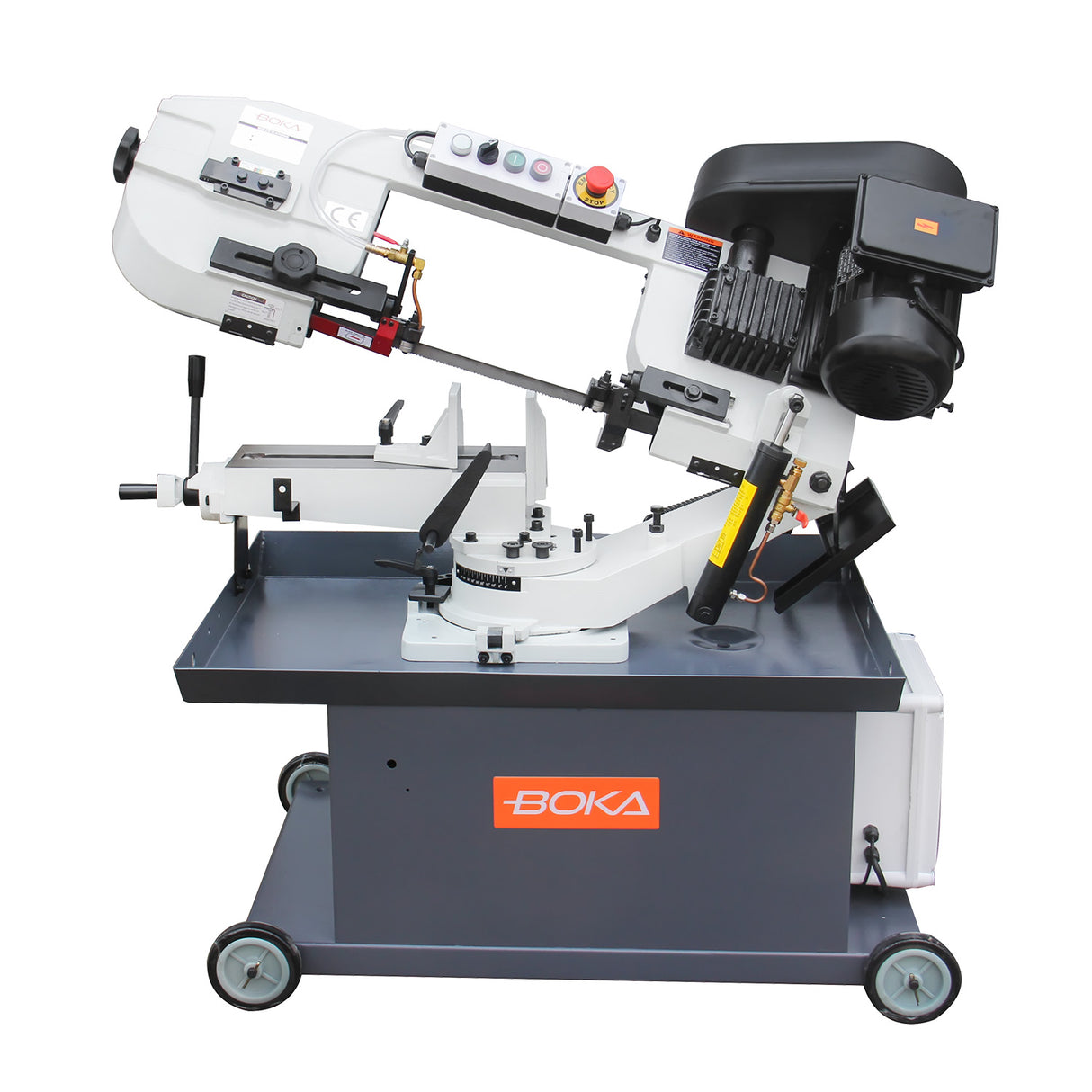

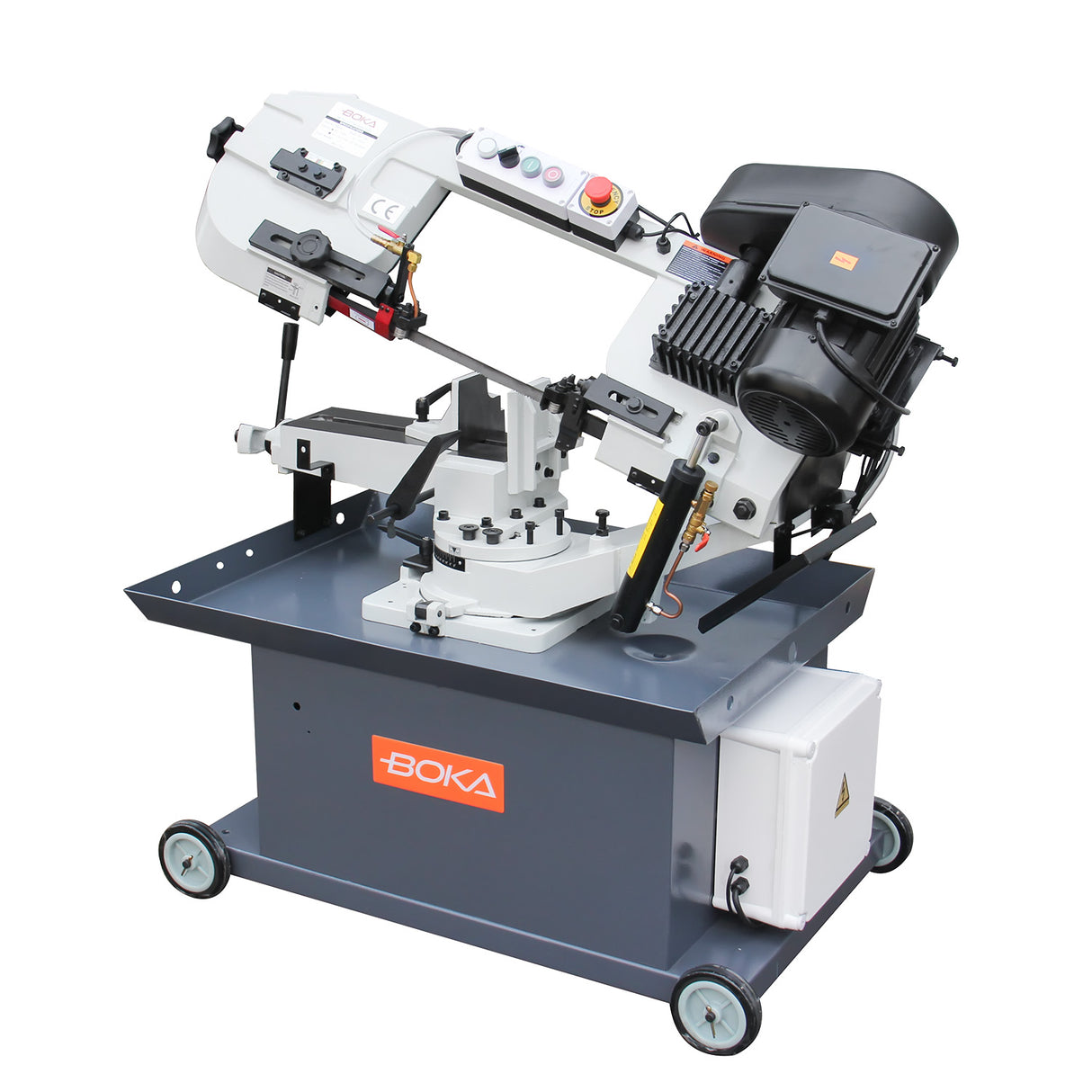

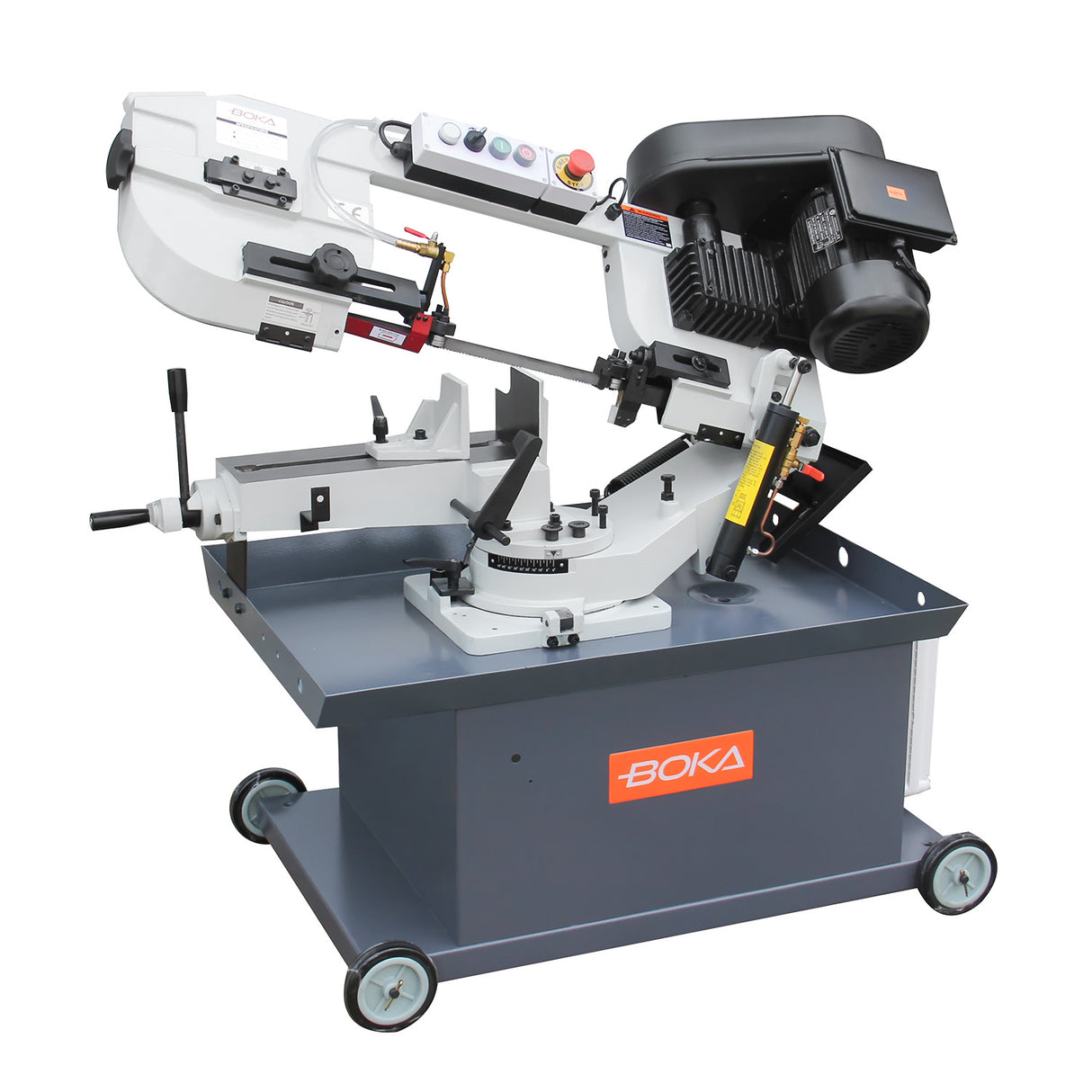

The BOKA BS-712R metal band saw is the ideal solution for precise and efficient cuts in metal. Thanks to its powerful 1.5 HP motor (230V) and robust construction, it is perfect for workshops, industry and trades.
Main features :
- Versatile cutting capacity – Cuts round and rectangular metal pieces up to 178 x 210 mm at 90° and 85 x 140 mm at 45°

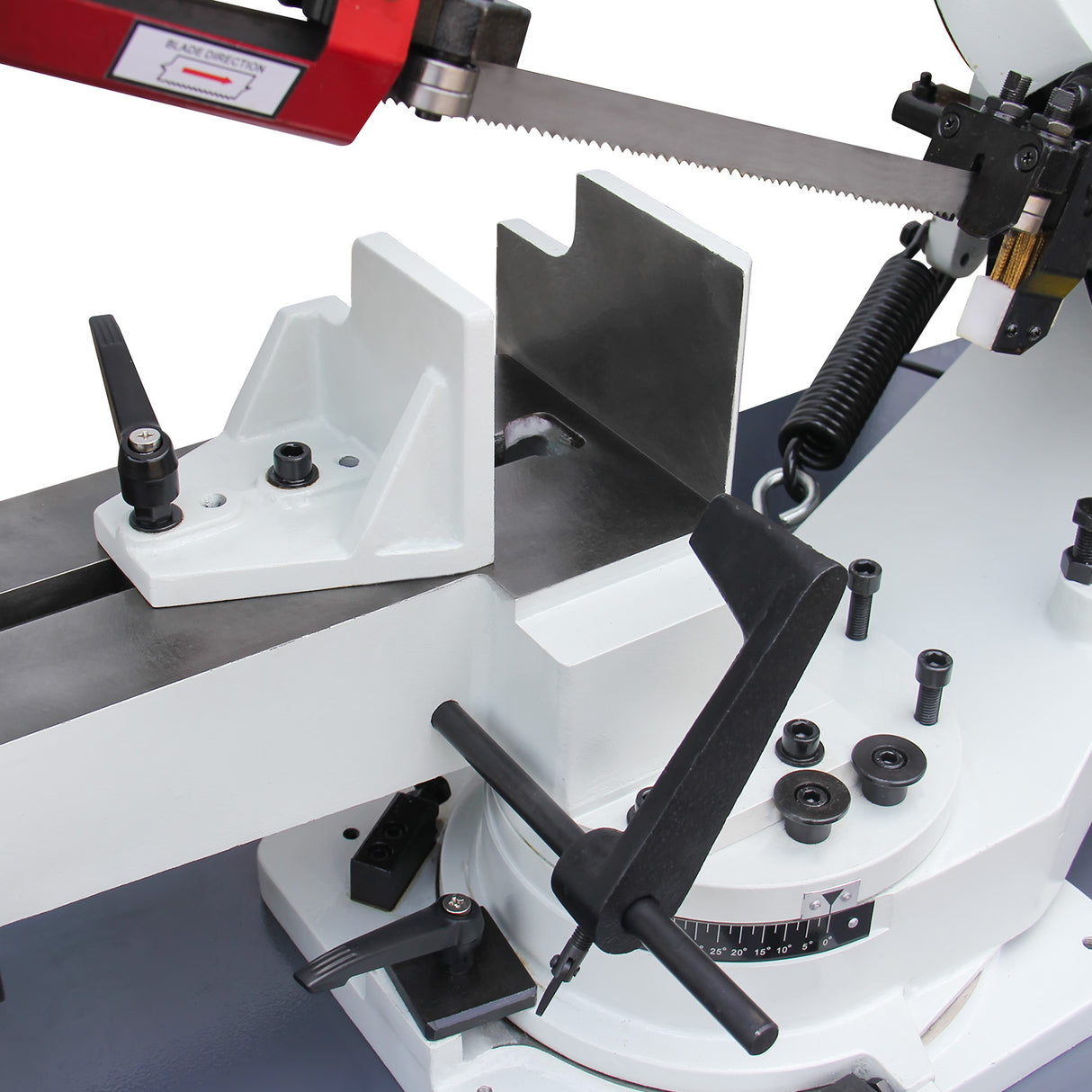

- Precise & adaptable – The saw frame can be swivelled from 45° to 90° for flexible mitre cuts
- Stepless speed adjustment – Four cutting speeds for optimal performance on different materials
- Robust construction – Durable construction for stable and low-vibration cuts
- Mobile & space-saving – Integrated wheels make transport and storage easier
- Safety & Comfort – Automatic shutdown in case of overheating, integrated cooling system to prevent overheating
Technical data:
- Cutting capacity:Circle 90°: 178 mm
- Rectangle 90°: 178 x 210 mm
- Circle 45°: 127 mm (5 inches)
- Rectangle 45°: 85 x 140 mm
- Blade speed: 60 Hz: 27, 41, 59, 78 m/min
- 50 Hz: 22, 34, 49, 64 m/min
- Band saw blade size: 20 x 0.9 x 2362 mm
- Motor power: 1.5 HP (1 PH), 750 W (3 PH)
- Dimensions: 50 x 28 x 45 cm
- Weight (NW/GW): 238 kg
Payment and security
How is the payment?
Your payment details are collected securely. We will not store any digital data related to our credit card or have access to your credit card information.
Function Indication
1. This band saw is equipped with a dual voltage 115V or 230V single phase motor that is pre-wired for 115V. The motor can be rewired if required.
2. The blade speed is adjustable, and two pulleys provide 4-level speeds.
3. The powerful motor provides the torque to drive the band saw blade efficiently and precisely through metalwork. The band saw can cut through cylindrical metal parts with a maximum diameter of 178 mm and is suitable for cutting round bars, pipes and other cylindrical materials.
4. Additionally, the band saw can cut rectangular metalwork with dimensions up to 178mm x 210mm, making it ideal for cutting flat or rectangular materials such as steel plates or beams.
5. This horizontal/vertical band saw offers all the features needed to produce professional metal cutting results, allowing users to make a wide variety of cuts from straight and curved cuts to complex designs.
6. Switching between the horizontal and vertical cutting modes of the same machine is quick and easy, saving time and effort and greatly improving production efficiency compared to using multiple machines.

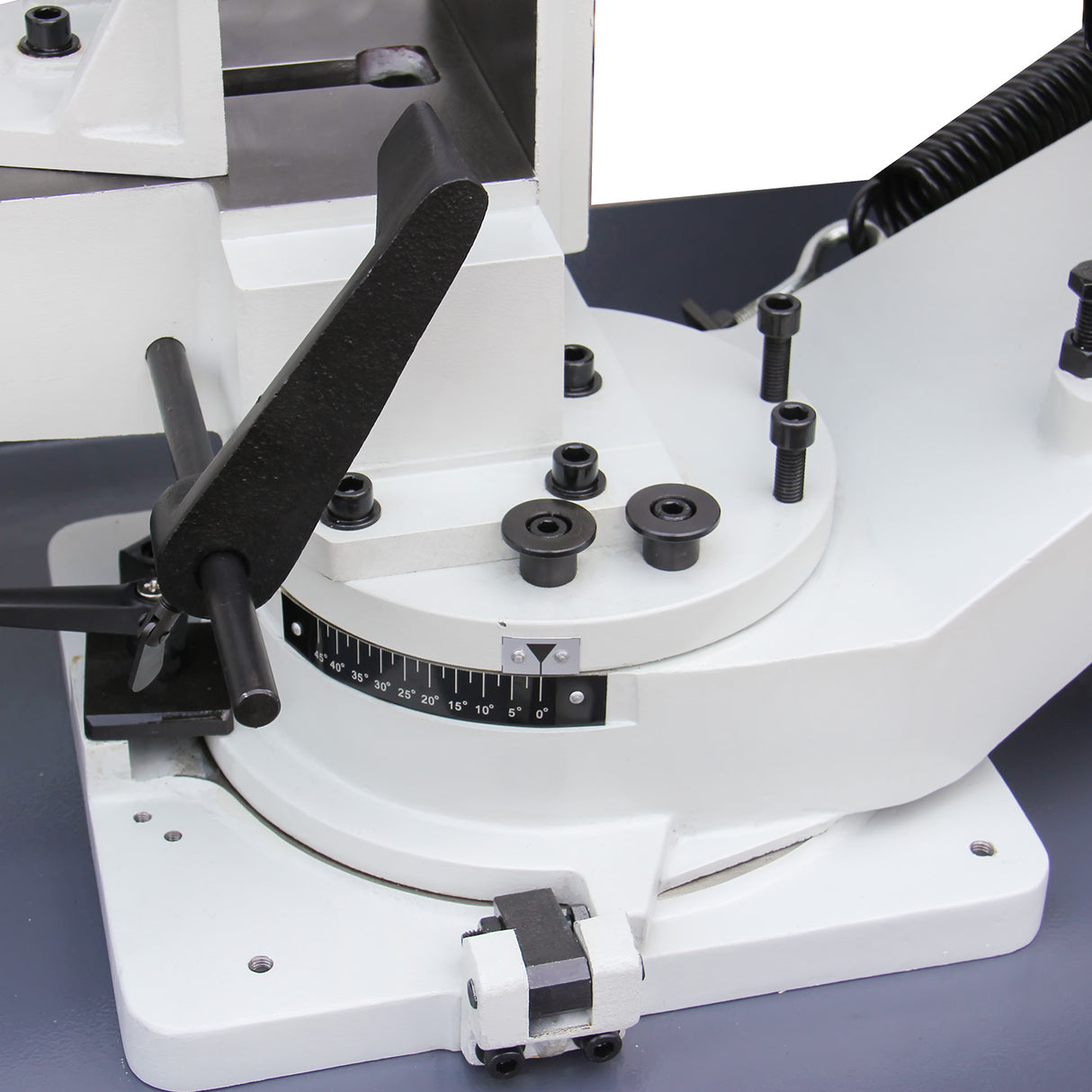

7. The saw bow is rotatable and allows the frame to be rotated up to 45 degrees to enable beveled cutting of materials.
8. The wheels on the stand make the machine mobile, save space and facilitate transport.
9. Adjustable bearing guides help align the saw blade and extend its lifespan.

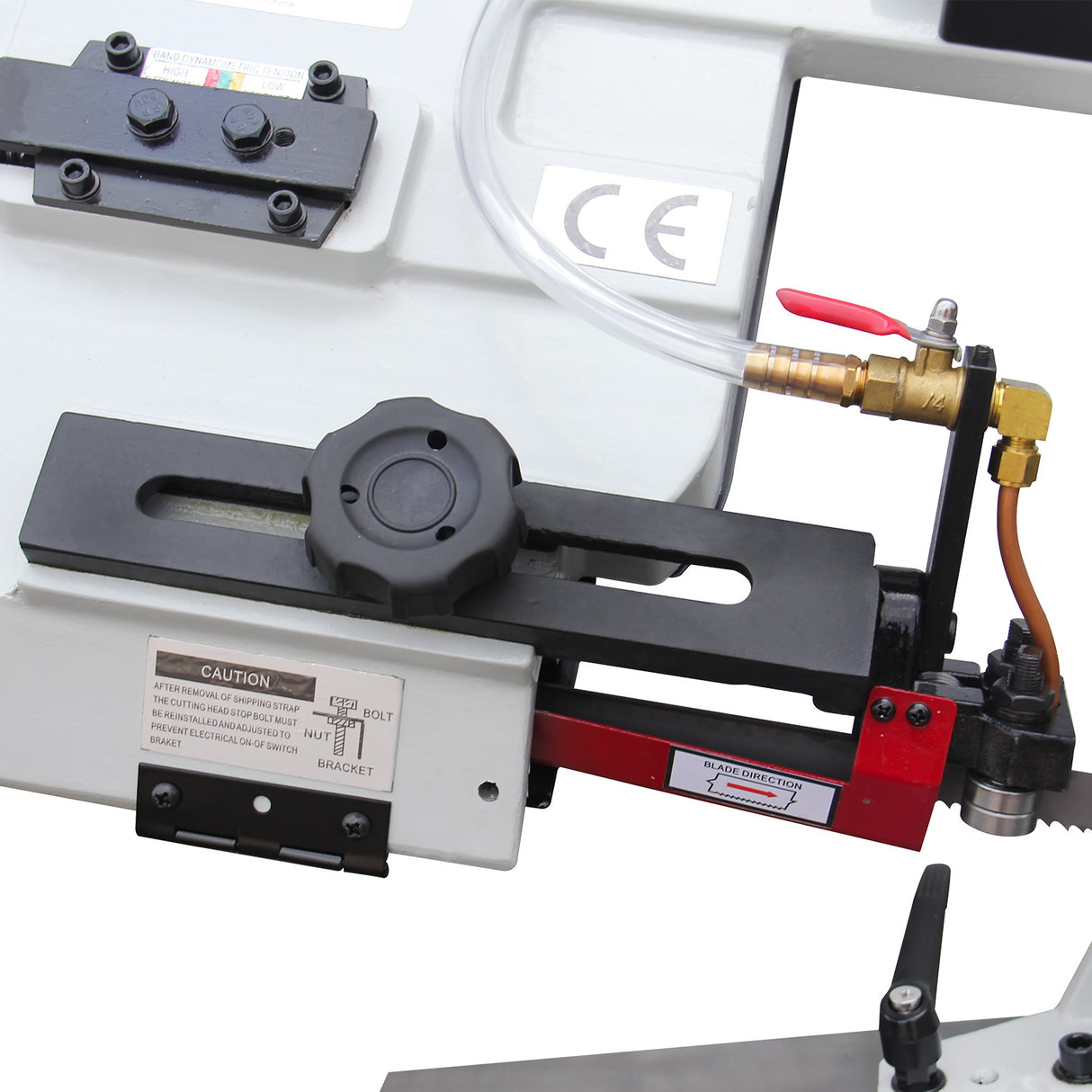

10. The band saw has a cooling system and an automatic shut-off device. It is also equipped with a hardened high carbon steel blade, brass fittings, ball valves, fully protected guide bushings and a full set of belt and saw blade guards.
11. The saw blade automatically shuts off when the task is completed and the built-in cooling system protects overheated saw blades for safe, smooth and continuous operation.
12. The band saw is a versatile tool used in a variety of applications in different industries and environments, including metalworking industries, manufacturing shops, maintenance facilities, educational institutions and hobby workshops.
1. This band saw is equipped with a dual voltage 115V or 230V single phase motor that is pre-wired for 115V. The motor can be rewired if required.
2. The blade speed is adjustable, and two pulleys provide 4-level speeds.
3. The powerful motor provides the torque to drive the band saw blade efficiently and precisely through metalwork. The band saw can cut through cylindrical metal parts with a maximum diameter of 178 mm and is suitable for cutting round bars, pipes and other cylindrical materials.
4. Additionally, the band saw can cut rectangular metalwork with dimensions up to 178mm x 210mm, making it ideal for cutting flat or rectangular materials such as steel plates or beams.
5. This horizontal/vertical band saw offers all the features needed to produce professional metal cutting results, allowing users to make a wide variety of cuts from straight and curved cuts to complex designs.
6. Switching between the horizontal and vertical cutting modes of the same machine is quick and easy, saving time and effort and greatly improving production efficiency compared to using multiple machines.
7. The saw bow is rotatable and allows the frame to be rotated up to 45 degrees to enable beveled cutting of materials.
8. The wheels on the stand make the machine mobile, save space and facilitate transport.
9. Adjustable bearing guides help align the saw blade and extend its lifespan.
10. The band saw has a cooling system and an automatic shut-off device. It is also equipped with a hardened high carbon steel blade, brass fittings, ball valves, fully protected guide bushings and a full set of belt and saw blade guards.
11. The saw blade automatically shuts off when the task is completed and the built-in cooling system protects overheated saw blades for safe, smooth and continuous operation.
12. The band saw is a versatile tool used in a variety of applications in different industries and environments, including metalworking industries, manufacturing shops, maintenance facilities, educational institutions and hobby workshops.
Technical data
The blades are tuned

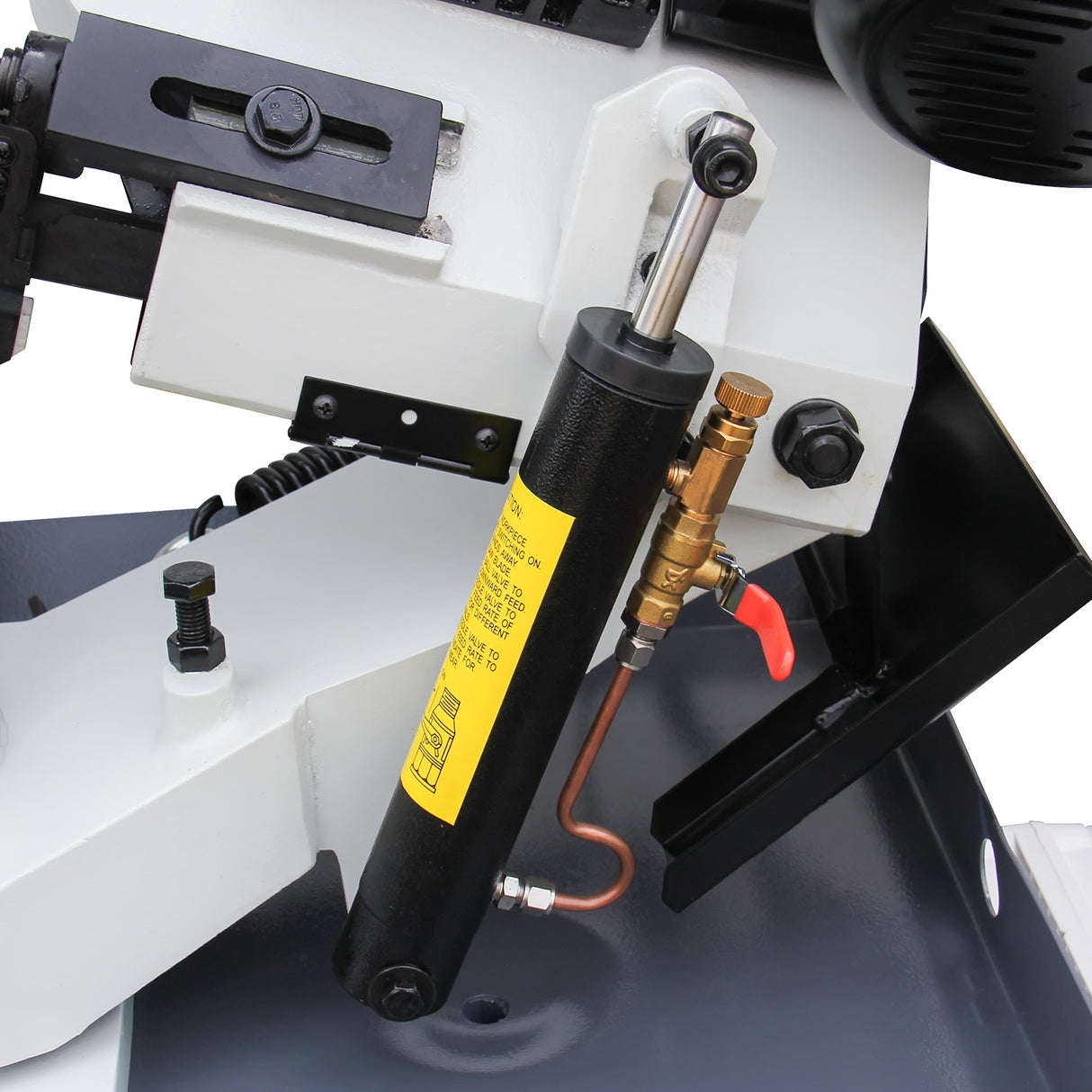

Yes, hydraulics.
Standard cooling system
