BOKA BS-912B Metal Band Saw - 178 x 305 mm cutting capacity, 45°-90...

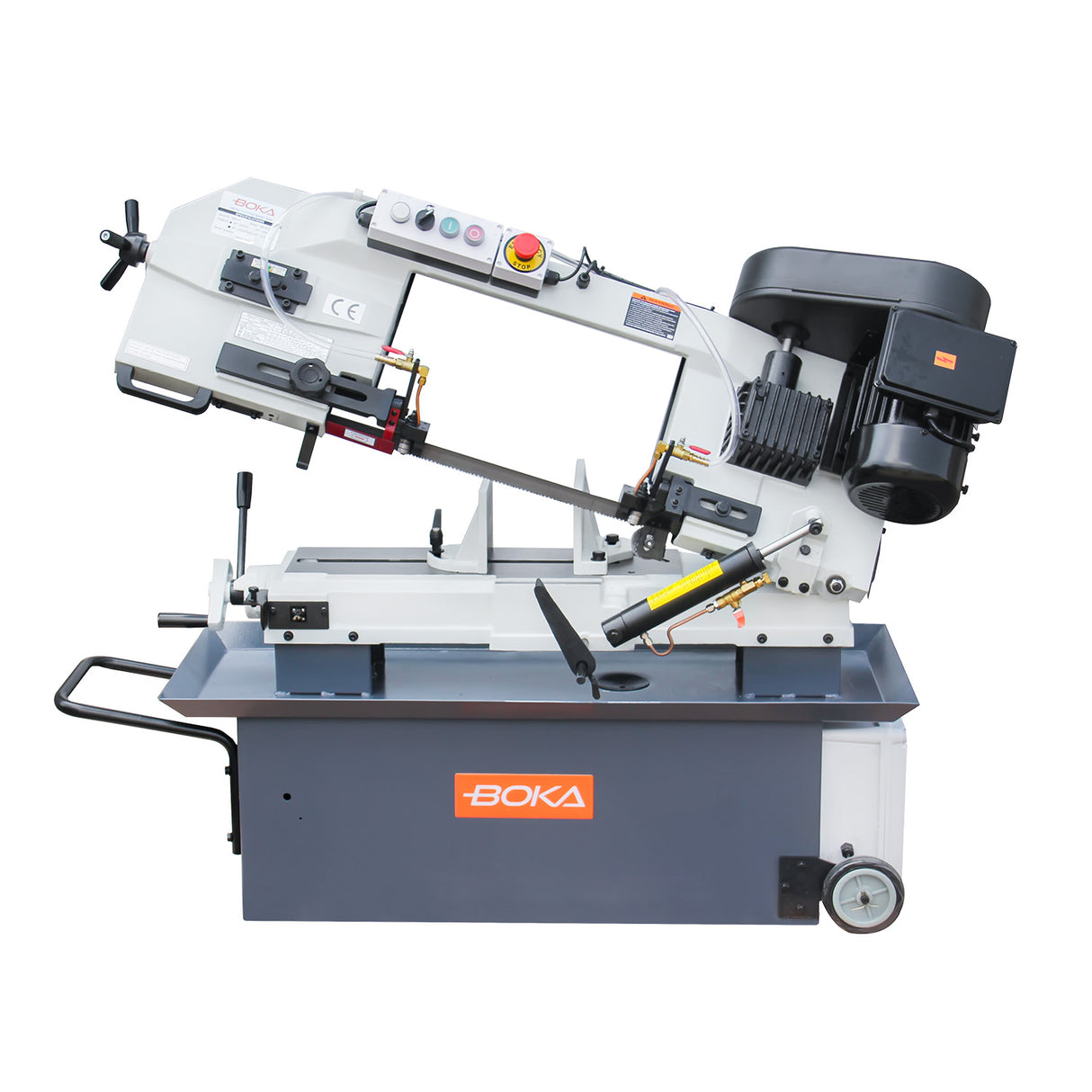

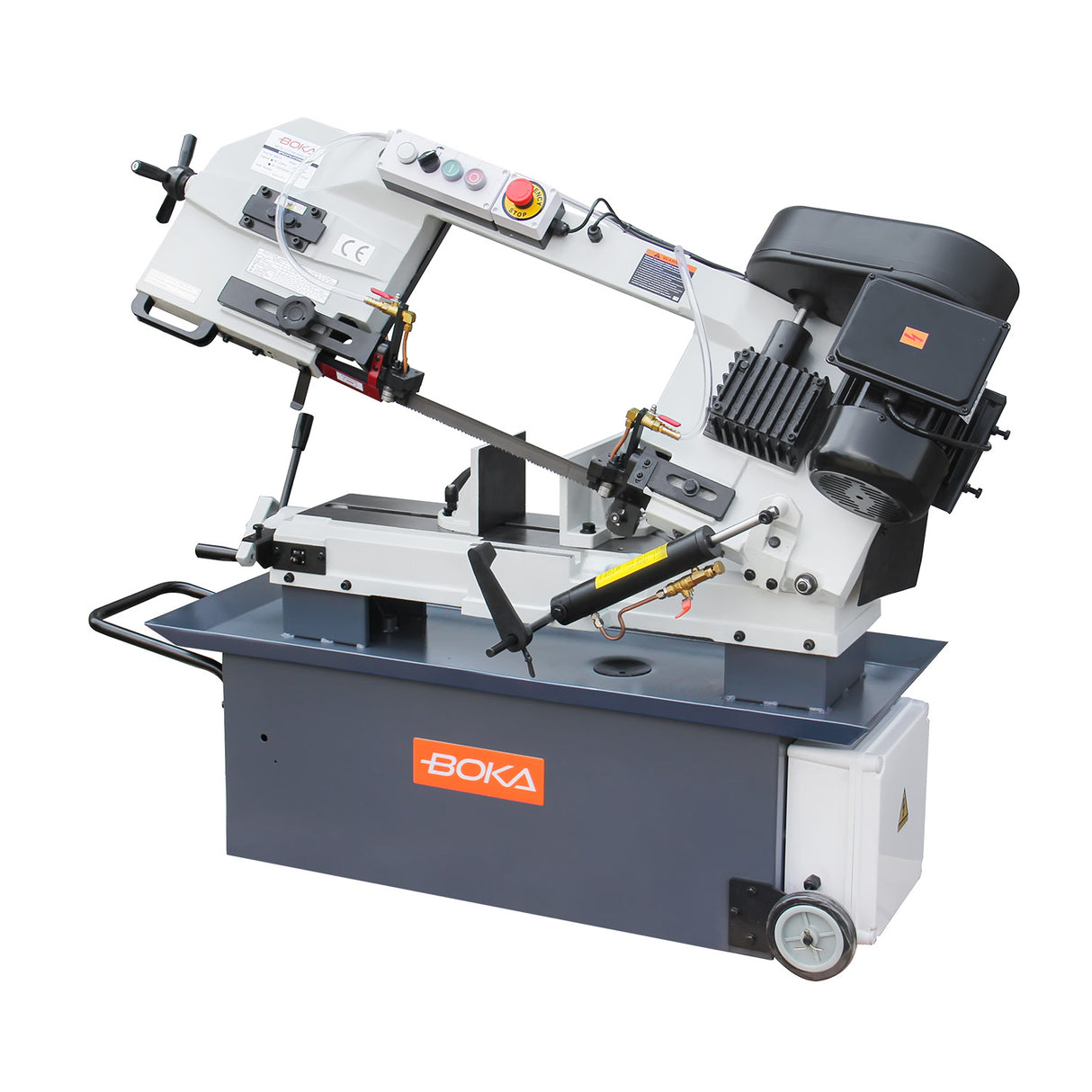

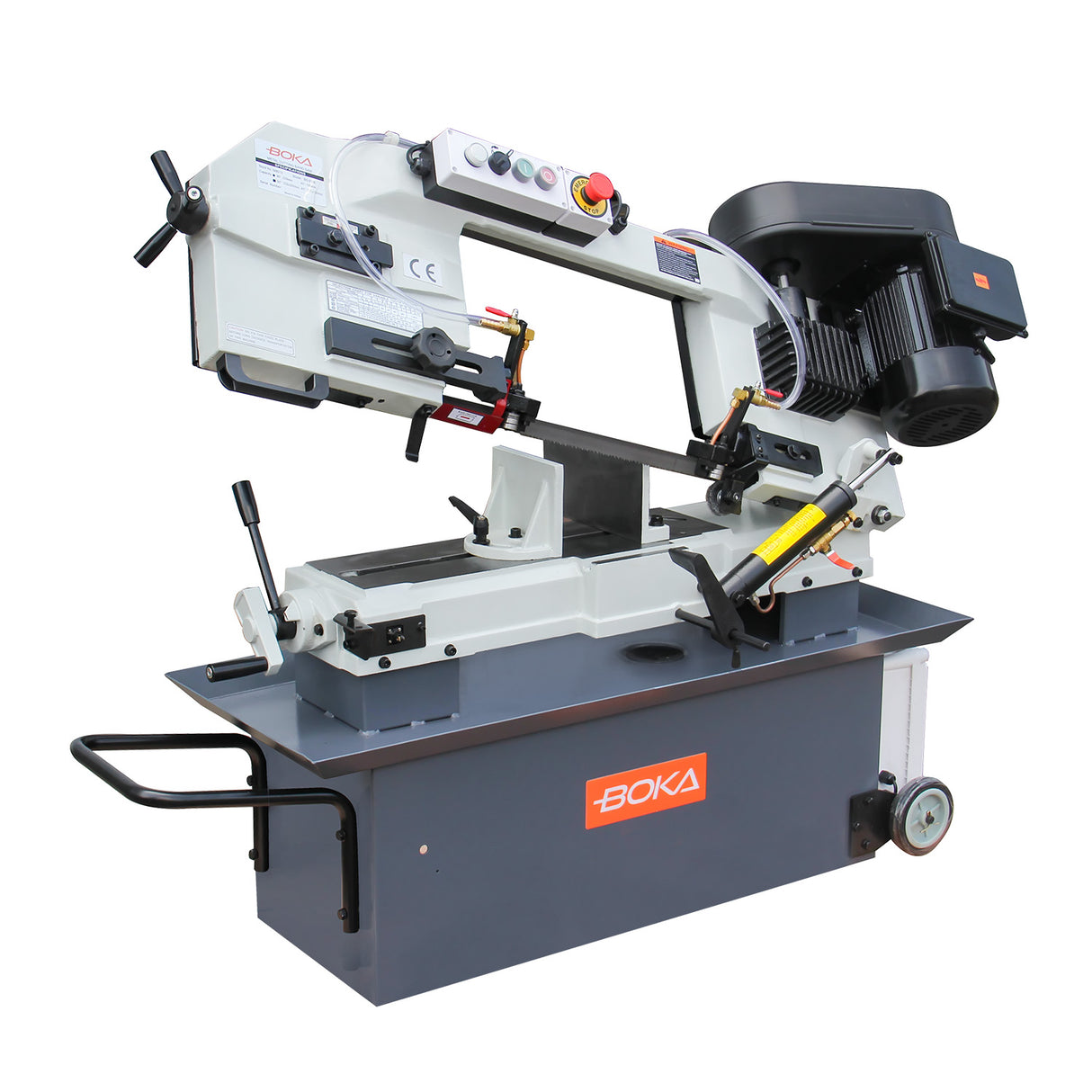

Powerful & Precise Metal Band Saw for Professional Applications
The BOKA BS-912B metal band saw is a robust and versatile machine designed for precise and efficient metal cutting. With a cutting capacity of up to 178 x 305 mm and a powerful 1.1 kW motor (230V), it is ideal for workshops, industry and trade.
Main features:
- High cutting capacity – Cuts metal with a maximum diameter of 229 mm (round) or 178 x 305 mm (rectangular) at 90°
- Flexible miter cut – quick-clamping device for precise 0° to 45° miter cuts
- Powerful motor – 1.1 kW (1.5 HP) motor for consistent and efficient cutting performance
- Four cutting speeds – 26, 50, 73 and 95 MPM, adjustable for different materials
- Hydraulically controlled lowering – even and precise guidance of the saw bow for optimal cutting results
- Integrated cooling system – Extends the life of the saw blade and improves cutting accuracy
- Mobile & space-saving – Equipped with wheels for easy movement and compact storage
- Maximum security & user-friendliness
- Hydraulic system for precise control – Enables safe and controlled cutting
- Automatic shutdown & overheating protection – Prevents damage to the machine and ensures a long service life
- Robust cast iron construction – ensures high stability and low-vibration cuts
Technical data:
- Cutting capacity:Circle 90°: 229 mm
- Rectangle 90°: 178 x 305 mm
- Circle 45°: 150 mm
- Rectangle 45°: 127 x 150 mm
- Blade speed: 26, 50, 73, 95 MPM
- Band saw blade size: 27 x 0.9 x 2655 mm
- Engine power: 1.1 kW (1.5 HP), 230V
- Dimensions: 154 x 59 x 115 cm
- Weight (NW/GW): 190/252 kg
Payment and security
How is the payment?
Your payment details are collected securely. We will not store any digital data related to our credit card or have access to your credit card information.
Function Indication

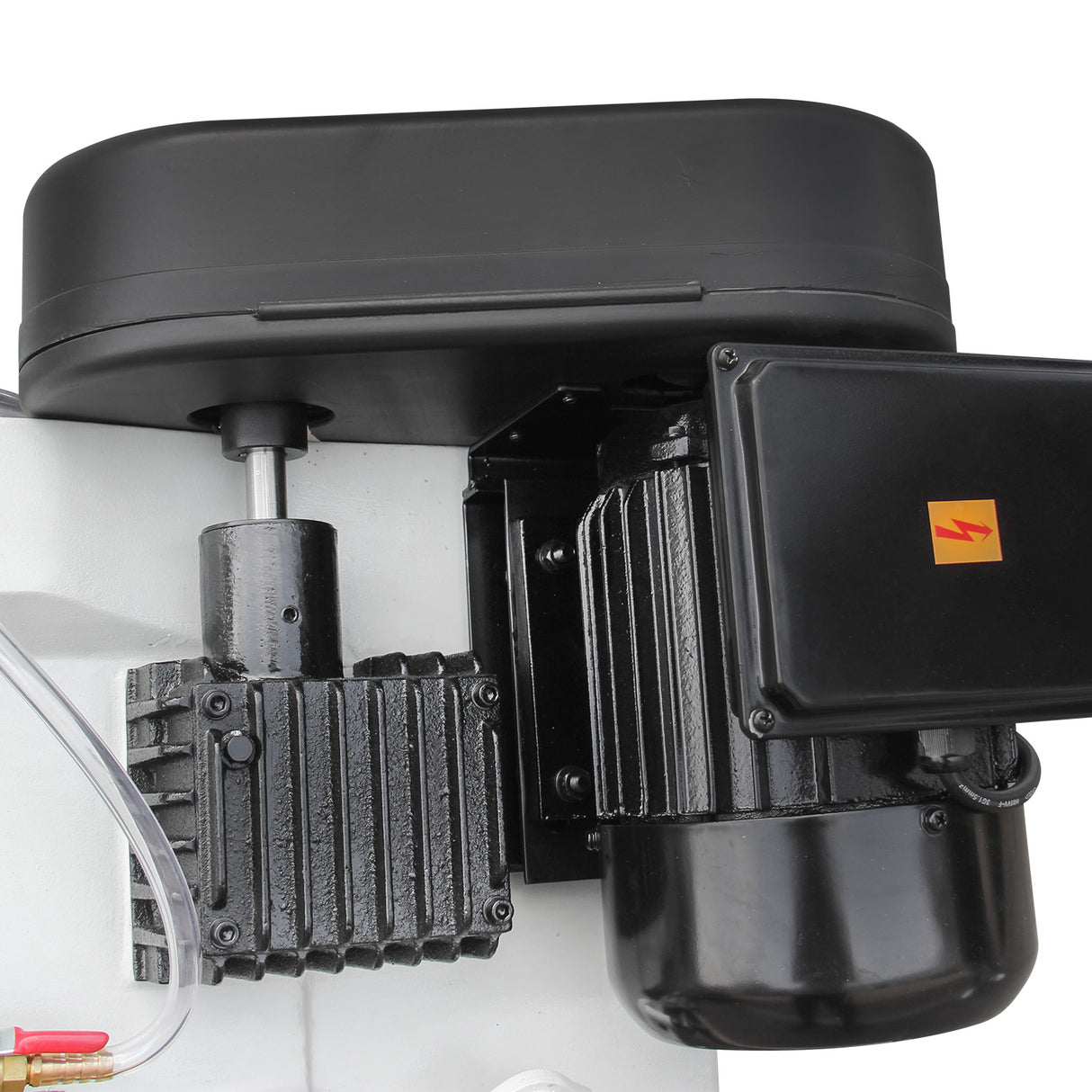

1. This band saw features dual voltage input of 115V or 230V for a single phase motor, which is factory preset to 115V, but you can rewire the motor as needed. The band saw stroke speed is adjustable, and two pulleys provide four different speed settings.
2. The powerful motor provides the torque to guide the band saw blade efficiently and precisely through metal workpieces. The band saw can cut cylindrical metal parts with a maximum diameter of 229 mm.
3. In addition, the band saw can cut rectangular metal parts with dimensions of up to 178x305 mm.
4. This horizontal/vertical band saw has all the features needed to achieve professional metal cutting results, allowing users to make a wide variety of cuts from straight and curved cuts to complex designs.
5. Hydraulic cylinders provide precise control when lowering the cutting blade, allowing for smooth and consistent operation resulting in clean and consistent cuts.

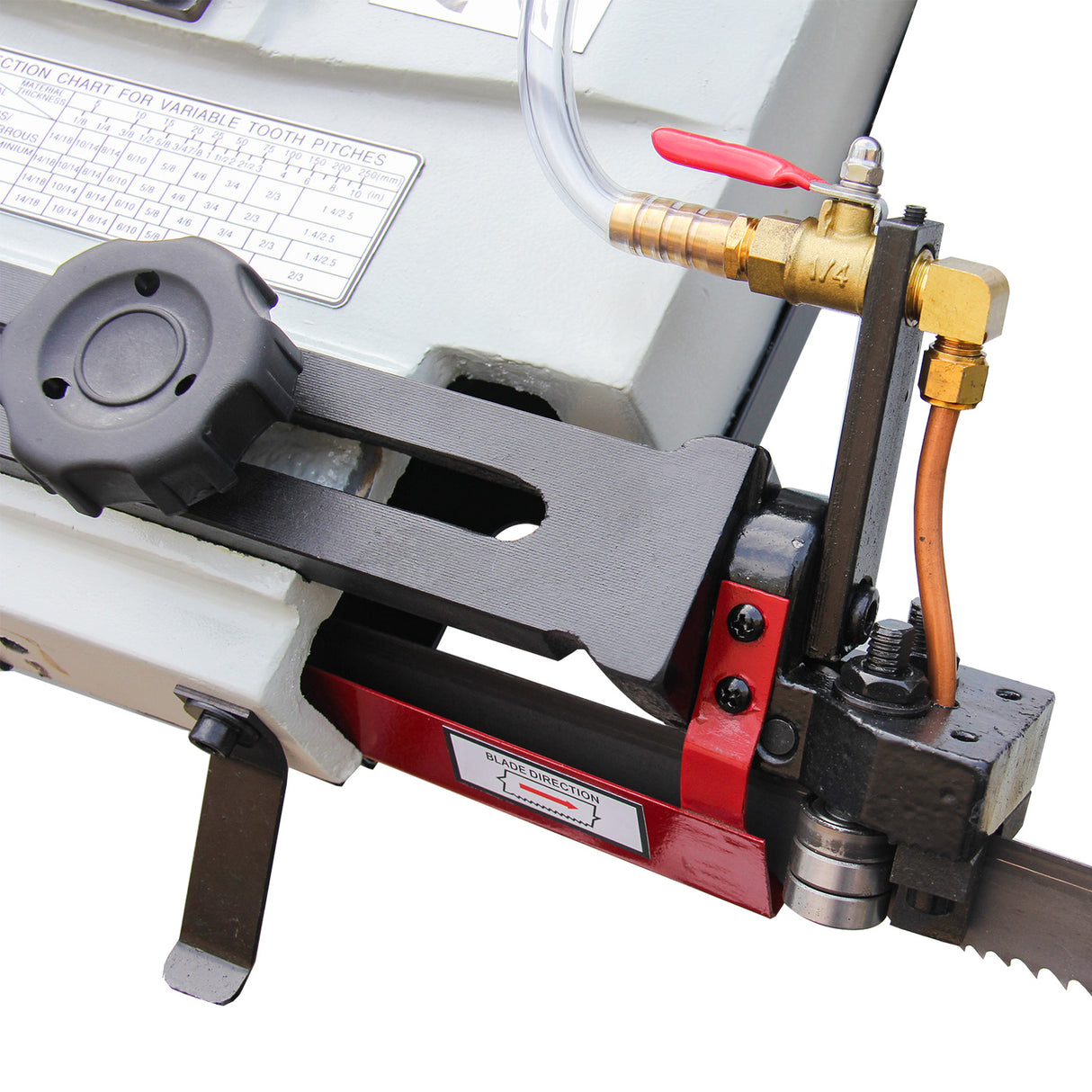

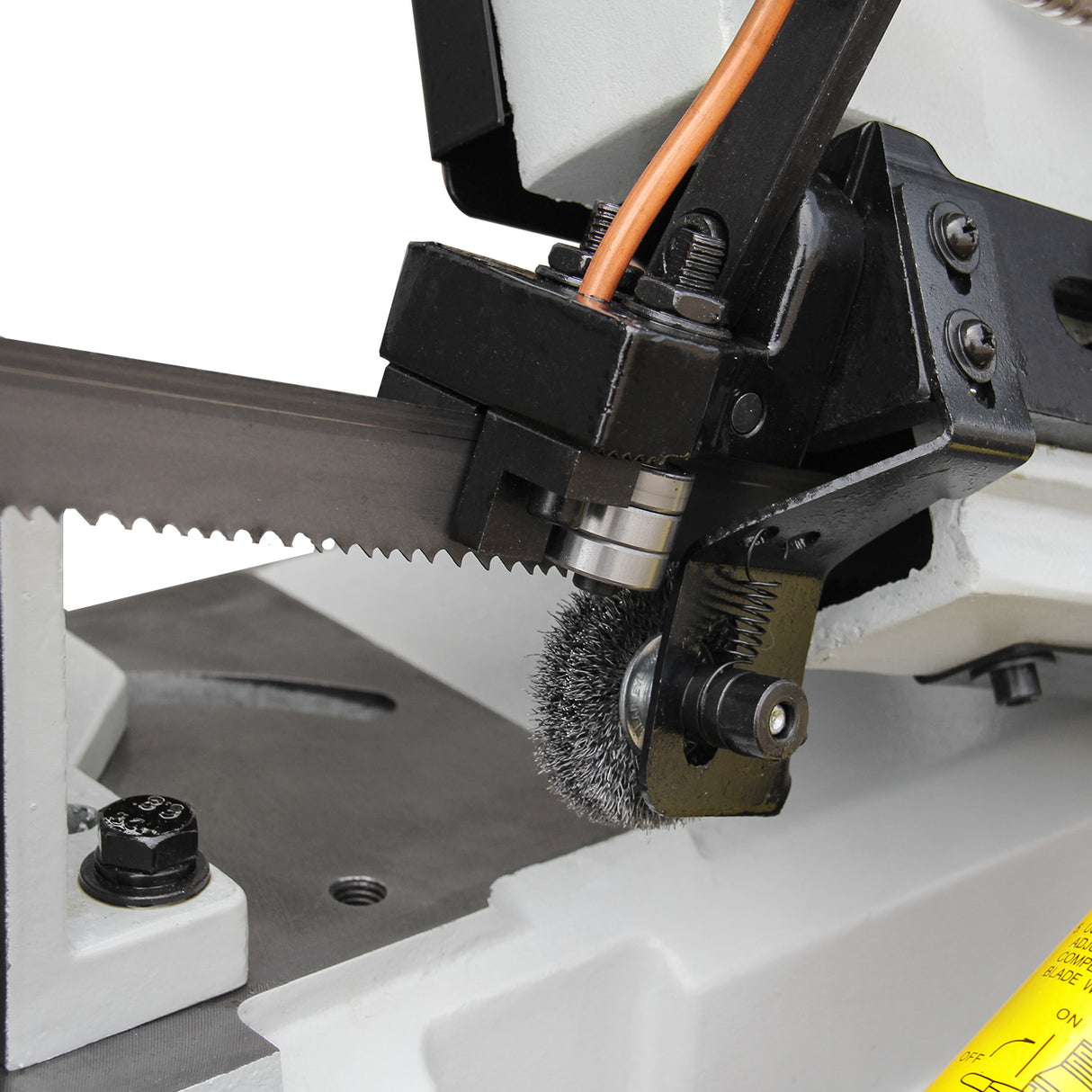

6. For more convenience, this metal band saw features adjustable roller cutting guides and adjustable material stops to handle different materials.
7. The handle and wheels on the base make it easy to move the machine. If you are short on space, you can move the saw to a corner or your garage when not in use to save time and space.
8. The hydraulic system improves safety by providing operators with reliable and responsive control over the cutting process. The band saw features a cooling system and an automatic shut-off device. It is also equipped with a high-temperature treated high-carbon steel blade, brass joints, ball valves, fully shielded guide rollers and a full set of belt and blade covers.
9. The band saw blade automatically shuts off when the job is completed and the integrated cooling system protects overheated saw blades, ensuring safe, continuous operation.
10. The band saw is a versatile tool that can be used in a variety of applications and industries, including metal fabrication, manufacturing shops, maintenance shops, educational institutions and DIY workshops.
1. This band saw features dual voltage input of 115V or 230V for a single phase motor, which is factory preset to 115V, but you can rewire the motor as needed. The band saw stroke speed is adjustable, and two pulleys provide four different speed settings.
2. The powerful motor provides the torque to guide the band saw blade efficiently and precisely through metal workpieces. The band saw can cut cylindrical metal parts with a maximum diameter of 229 mm.
3. In addition, the band saw can cut rectangular metal parts with dimensions of up to 178x305 mm.
4. This horizontal/vertical band saw has all the features needed to achieve professional metal cutting results, allowing users to make a wide variety of cuts from straight and curved cuts to complex designs.
5. Hydraulic cylinders provide precise control when lowering the cutting blade, allowing for smooth and consistent operation resulting in clean and consistent cuts.
6. For more convenience, this metal band saw features adjustable roller cutting guides and adjustable material stops to handle different materials.
7. The handle and wheels on the base make it easy to move the machine. If you are short on space, you can move the saw to a corner or your garage when not in use to save time and space.
8. The hydraulic system improves safety by providing operators with reliable and responsive control over the cutting process. The band saw features a cooling system and an automatic shut-off device. It is also equipped with a high-temperature treated high-carbon steel blade, brass joints, ball valves, fully shielded guide rollers and a full set of belt and blade covers.
9. The band saw blade automatically shuts off when the job is completed and the integrated cooling system protects overheated saw blades, ensuring safe, continuous operation.
10. The band saw is a versatile tool that can be used in a variety of applications and industries, including metal fabrication, manufacturing shops, maintenance shops, educational institutions and DIY workshops.
Technical data

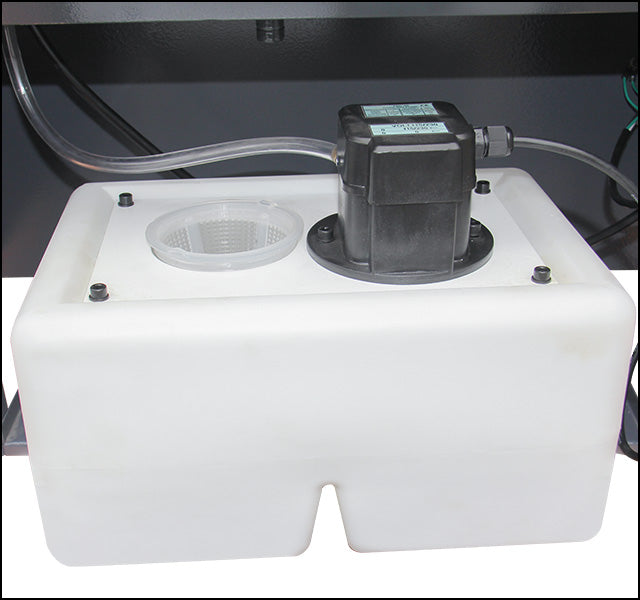

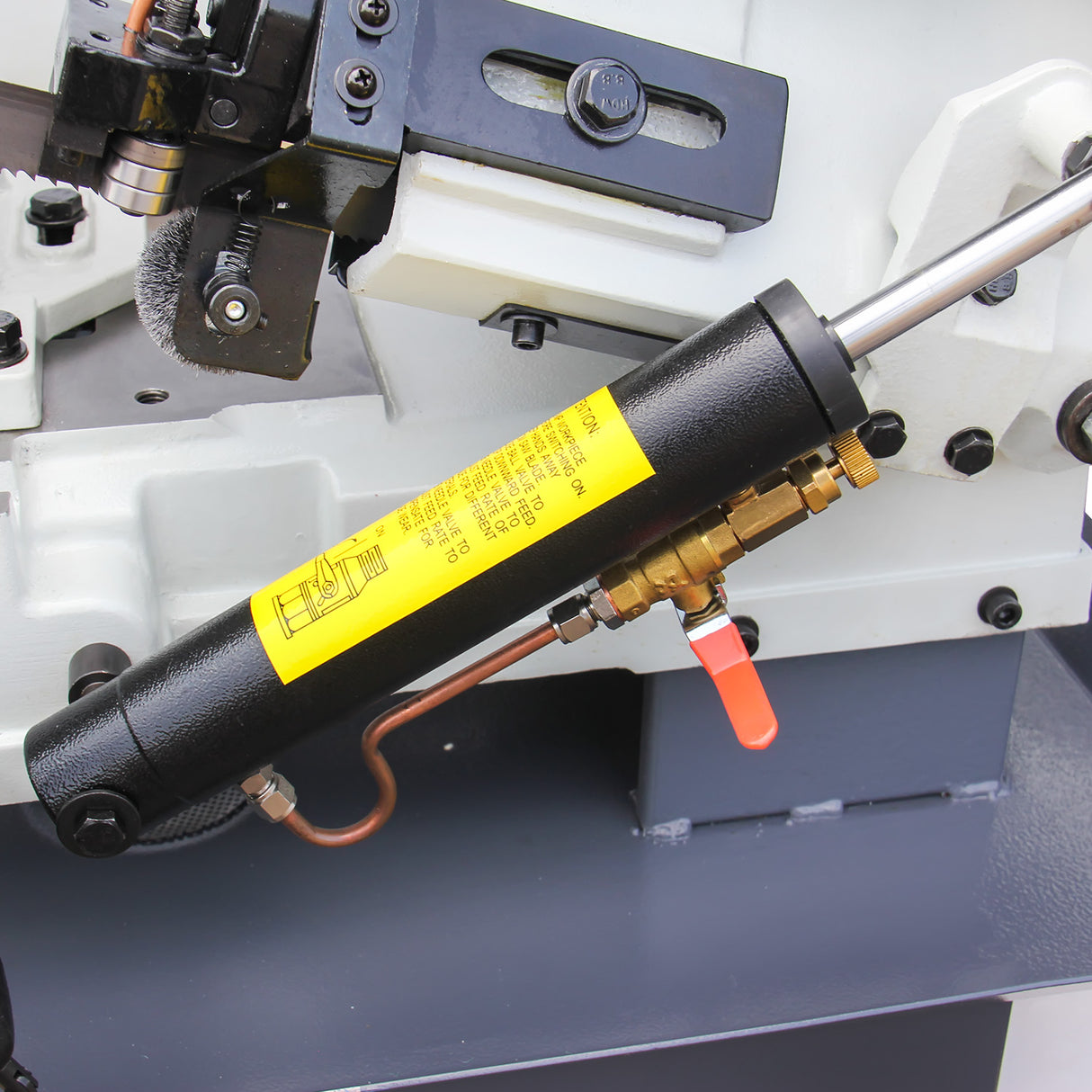

The hydraulics at the bottom of the tank

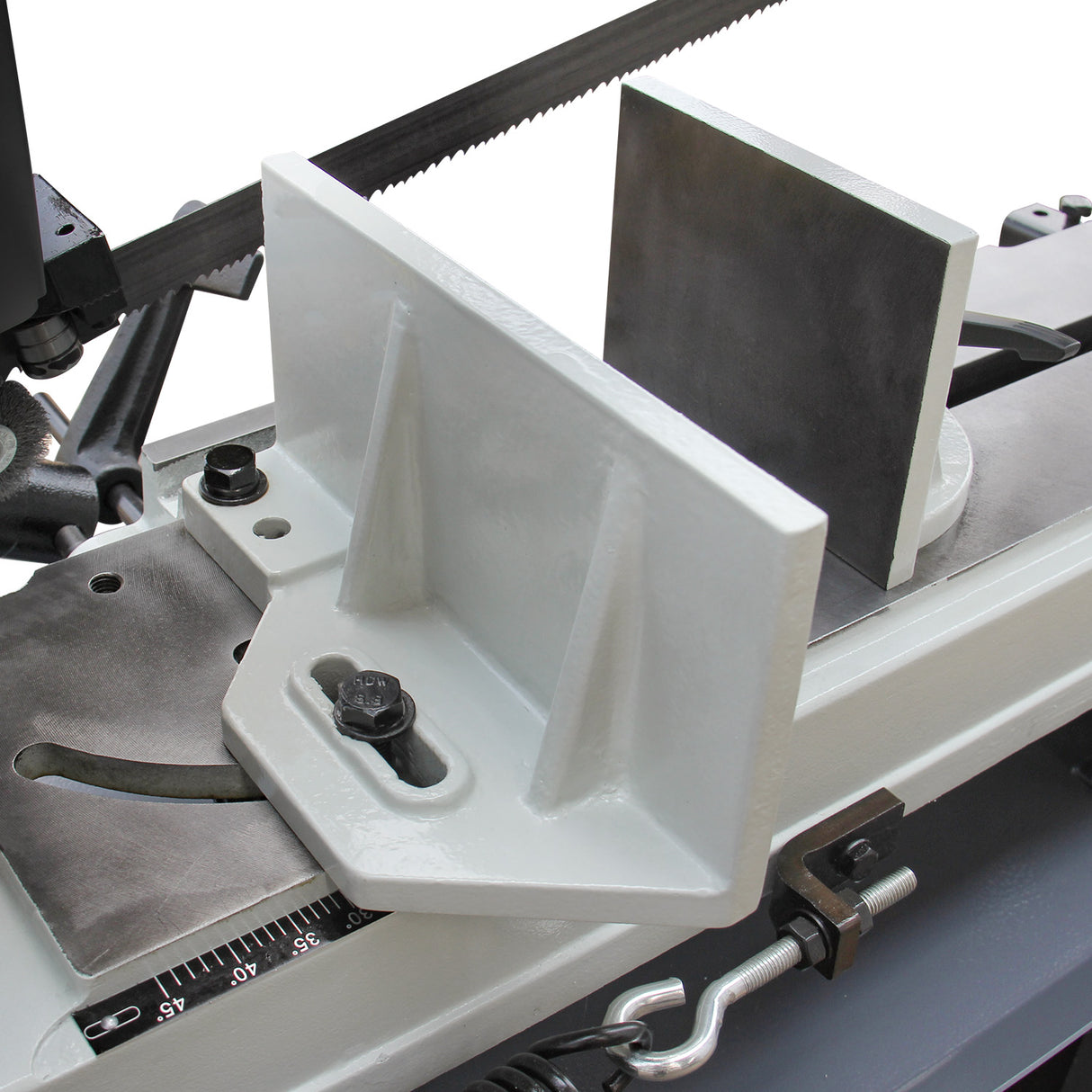

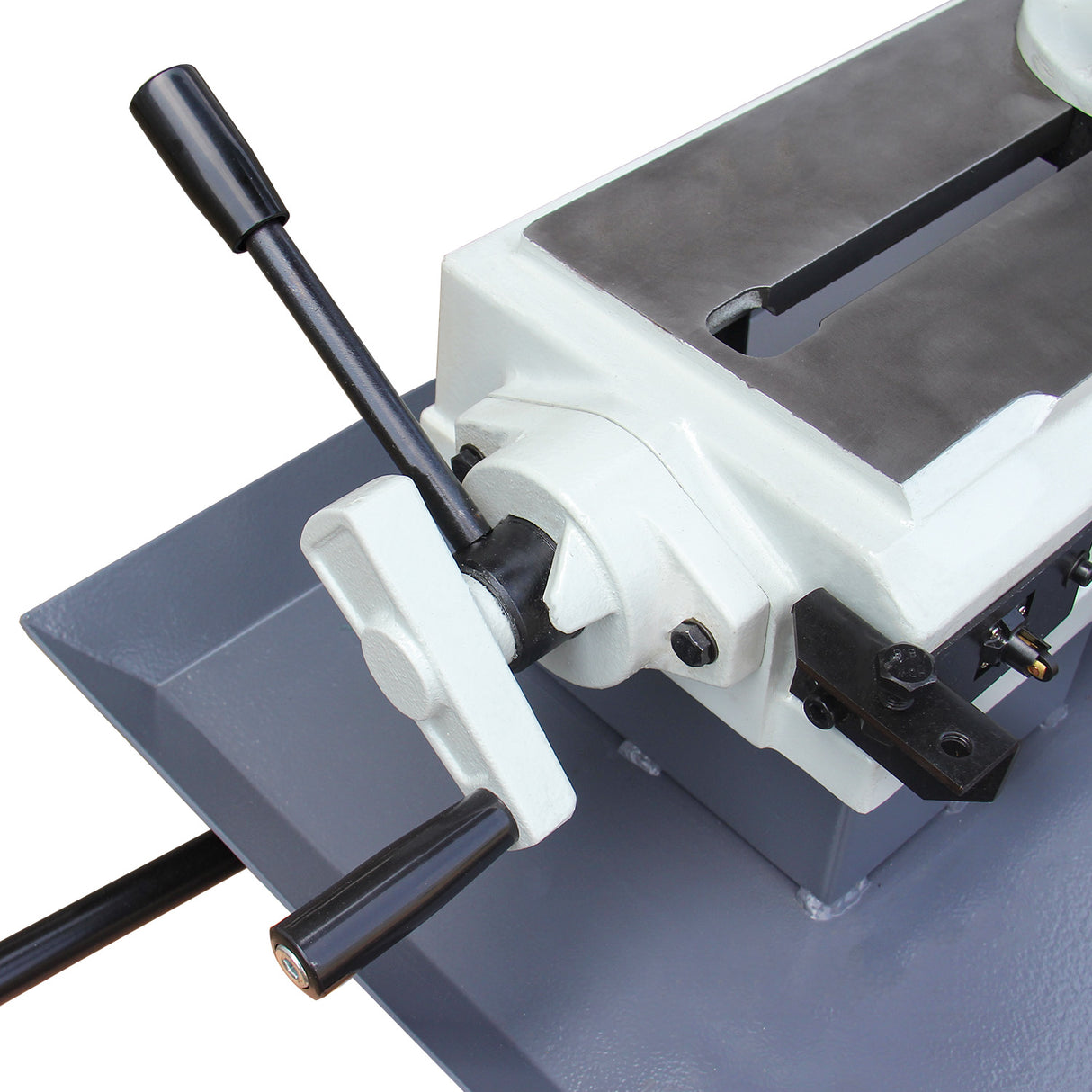

Turn 45 °.
You shovel yourself.
