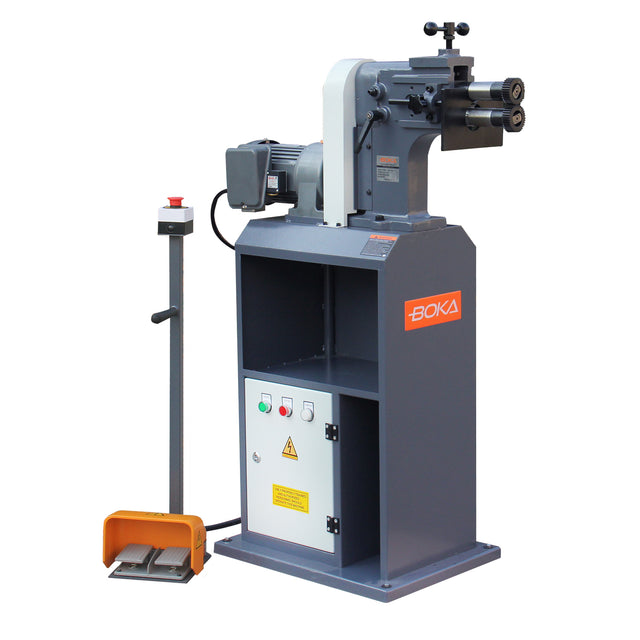

BOKA ETB-12 motorized beading machine
BOKA ETB-12 motorized beading machine is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and transport
Delivery and transport
Add some general information about your delivery and shipping policies.
BOKA ETB-12 motorized beading machine
characteristics
- 230V-50HZ-1PH
- industrial-quality gearboxes
- Robust cast iron head
- 200 mm projection with removable depth stop
- The foot pedal control leaves your hands free to hold the material
- forward and reverse pedals
- Standard with 4 tool sets: Bead, Crimp, Ogee Bead, Step
- Optional roles: E1 to E8
Technical data
- Model: ETB-12
- Max. thickness: 1.2 mm
- Cylinder length: 140 mm
- projection depth: 200 mm
- Engine power: 0.75 kW, 1 hp
- Pack size: 110x48x148 cm
- NW/GW: 130/175 kg
Payment and security
How is the payment?
Your payment details are collected securely. We will not store any digital data related to our credit card or have access to your credit card information.
Function Indication
1. This electric bead roller is powered by a 110V industrial motor and gearbox.
2. It has a 203mm through depth with a removable depth stop and can bend up to 18 Ga. Its robust, durable cast iron construction prevents deformation and extends its service life.
3. Foot pedal operation leaves your hands free to hold the material.
4. The sheet bead machine can roll in both directions, forward and backward, which is ideal for intricate designs.
5. The lower spindle is made of special steel and is adjustable. The self-braking motor is located in the lower frame.
6. It comes with 4 sets of standard rollers to cover different metal thicknesses and design requirements.
7..The electric bead bender is a versatile tool that can be used in a variety of industries and tasks including the automotive and construction industries, sheet metal fabrication, metal plate reinforcement, DIY and hobby projects and more.
1. This electric bead roller is powered by a 110V industrial motor and gearbox.
2. It has a 203mm through depth with a removable depth stop and can bend up to 18 Ga. Its robust, durable cast iron construction prevents deformation and extends its service life.
3. Foot pedal operation leaves your hands free to hold the material.
4. The sheet bead machine can roll in both directions, forward and backward, which is ideal for intricate designs.
5. The lower spindle is made of special steel and is adjustable. The self-braking motor is located in the lower frame.
6. It comes with 4 sets of standard rollers to cover different metal thicknesses and design requirements.
7..The electric bead bender is a versatile tool that can be used in a variety of industries and tasks including the automotive and construction industries, sheet metal fabrication, metal plate reinforcement, DIY and hobby projects and more.
Technical data
gang
4 sets of standard rollers
processing display
