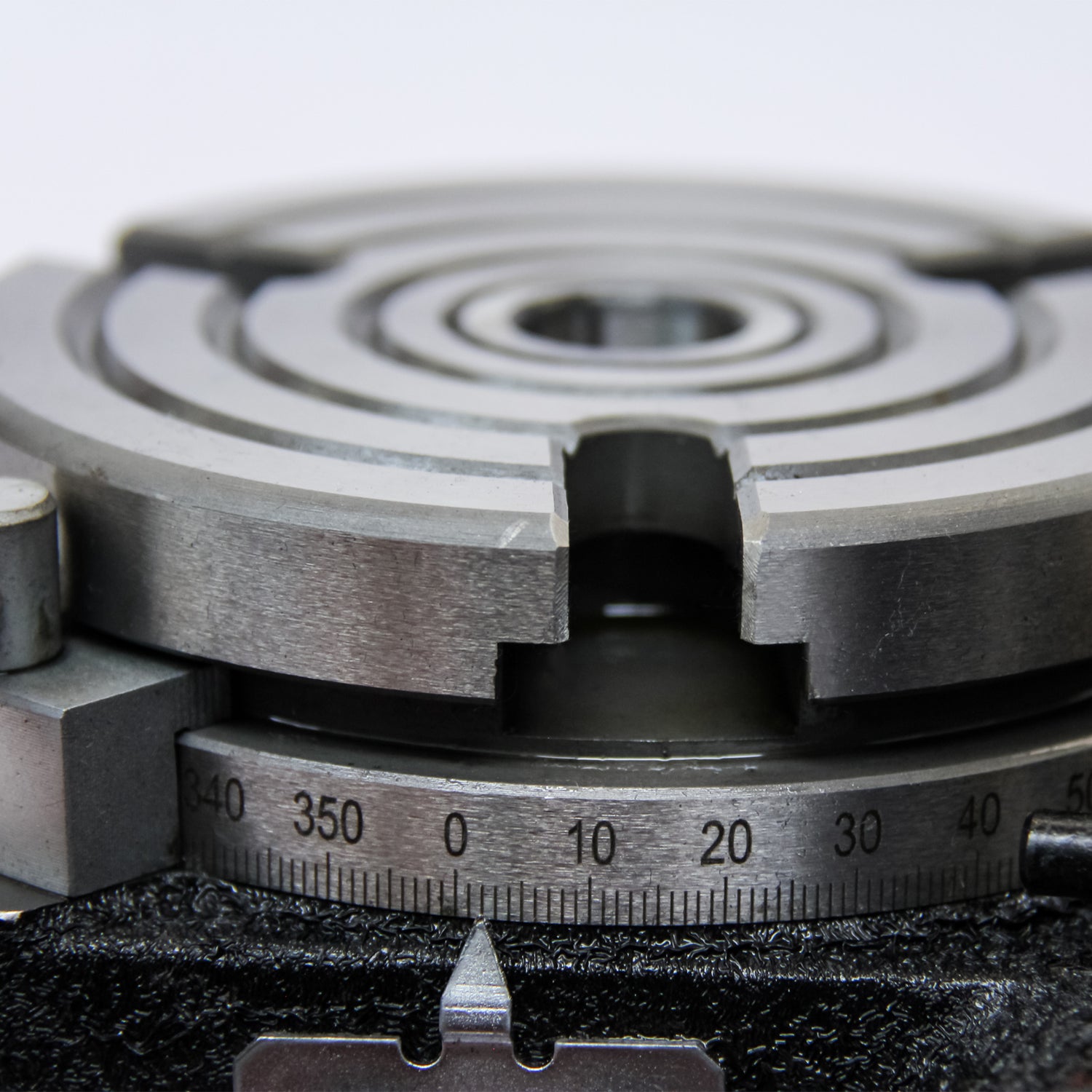

BOKA HV-4 Ø110mm Turning Device Horizontal Vertical, Cast Iron, MT2 Bore
BOKA HV-4 Ø110mm Turning Device Horizontal Vertical, Cast Iron, MT2 Bore is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and transport
Delivery and transport
Add some general information about your delivery and shipping policies.
BOKA HV-4 Ø110mm Turning Device Horizontal Vertical, Cast Iron, MT2...
Characteristics
- High-density cast iron housing for high stability and durability
- Vertically and horizontally adjustable table position for flexible application possibilities
- Handwheel rotation : 5° adjustment per handwheel rotation for precise adjustments
- Gear ratio : HV-4, 1:72; HV-6 and HV-8, 1:90 for a sensitive adjustment
- Ground table surfaces for high precision and low friction
Technical data
Article No. 161104
Model: HV-4
table diameter 110 mm
Morse taper MT2
width of the T-slot 12 mm
angle of the T-slot 120°
gear ratio of the worm gear 1:72
minimum value of the Vernier scale 10"
Max. load capacity (horizontal) 110 kg
Max. load capacity (vertical) 110 kg
Packaging size 19 x 10 x 12 cm
Net weight / gross weight 7 / 9 kg
