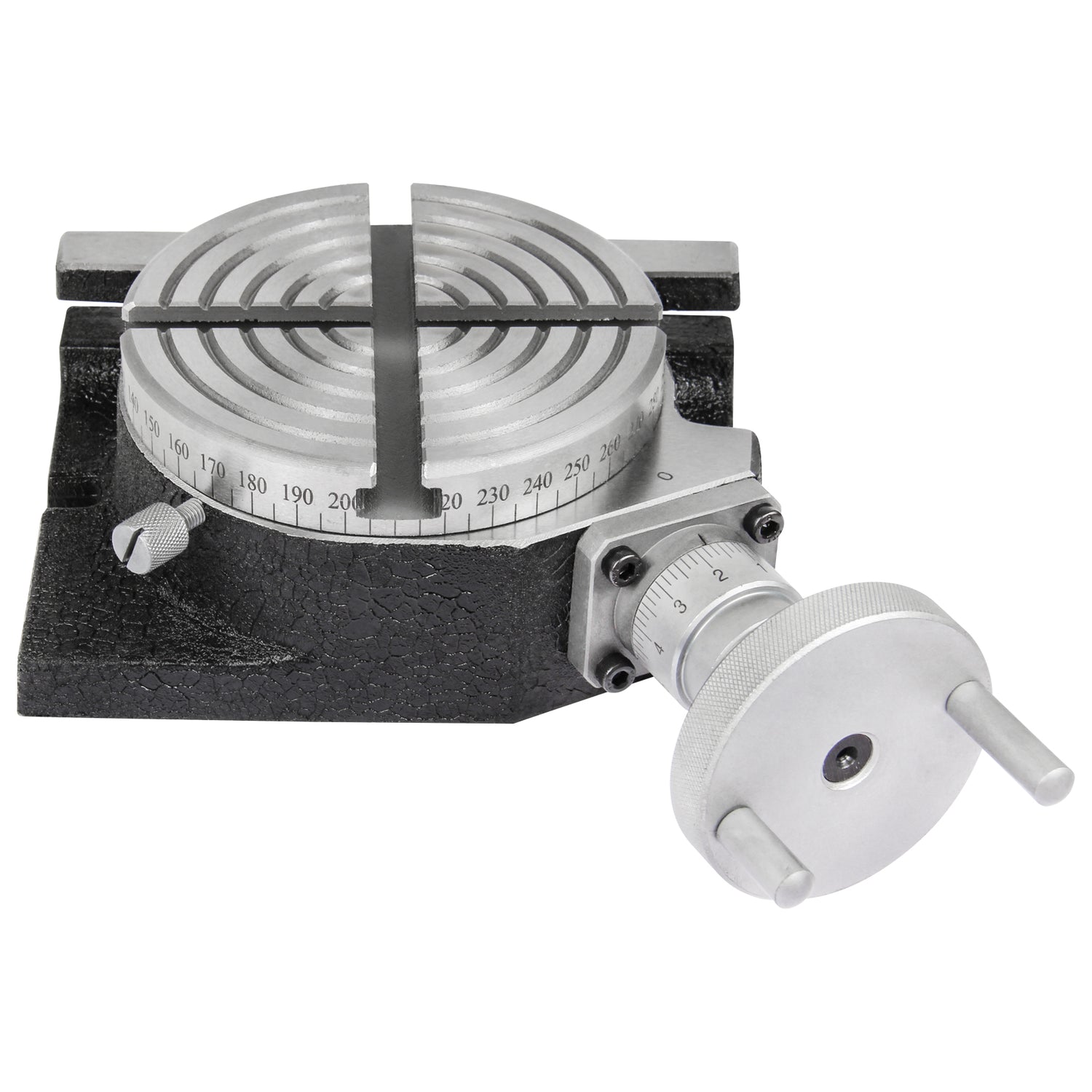

BOKA MHV-4 Mini Series Turntable, 100mm Turntable with Tilting Base

Rotating device with tilting base (100 mm)

• Precision-machined cast iron : Made of high-quality, precision-ground cast iron for high strength and durability.
• Hardened and ground worm gear : Ensures precise and low-friction movement.
• Table graduation on 360° : The table can be adjusted over the entire range of 360°, ideal for versatile applications.
• Tilting base with 90° tilt : This feature offers additional flexibility to position the table at different angles, which is particularly advantageous in precision model making.
• Precise table rotation and T-slots : The table has four T-slots with a width of 8 mm and a resolution of 5 minutes on the scale.
• Handwheel ratio 1:36 : For precise adjustment of the table position.
• Ball bearing support : The rotating base is equipped with ball bearings, which ensures smooth and precise rotation.
• Table height in horizontal position : 66 mm.
• Mounting holes : 8 mm diameter, for easy installation.

Packaging size

• Packaging dimensions : 25 x 18 x 8 cm
  • Net weight / gross weight : 3.5 kg / 4.5 kg
