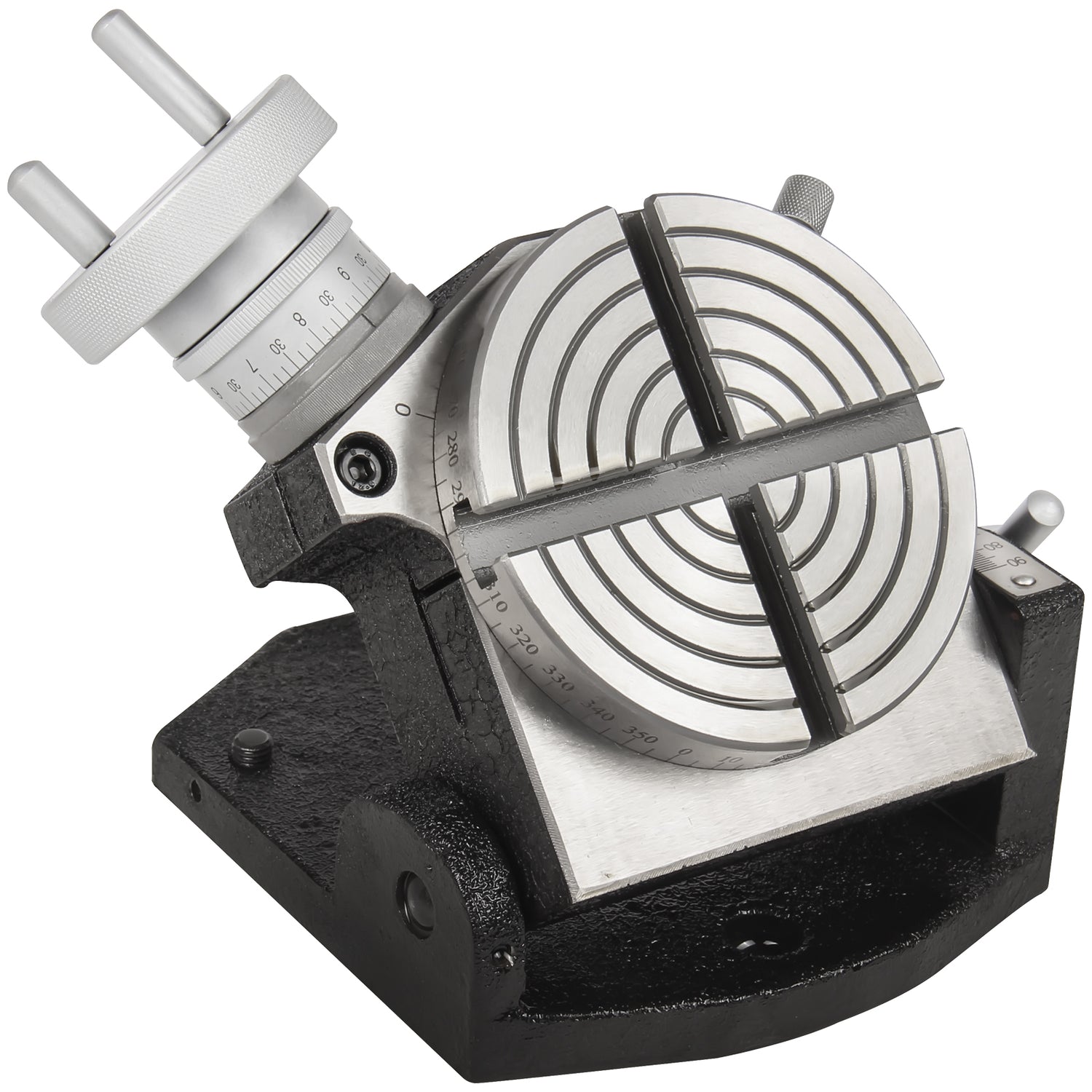

BOKA MTSK-4 Mini Series Turntable, 100mm Turntable with Set of Clamps

Horizontal or vertical use

1. Table height in horizontal position : 16 mm
2. Table height in vertical position : 83 mm
3. T-slots : 8 mm width
4. Mounting holes : 8 mm diameter
5. Handwheel gear ratio : 1:36 or 10° per turn of the handwheel
6. scale reads up to 15°
7. Brass locking button for stable positioning

This rotary jig is perfect for model makers and anyone who needs to do precise work on smaller scales. It features a scale on the dial , a worm gear , an adjustment screw for backlash correction , reference lines and ball bearing support for smooth rotation.

The delivery includes:

• 2 clamping screws, each 150 mm long
• T-slots
• aluminum clamps
• step pieces

packaging size

• Packaging dimensions : 25 x 18 x 8 cm
• Net weight / gross weight : 5 kg / 6 kg
